During the course of briquetting, most materials can not be formed unless you add liquid adhesive or blend them with water. However, some materials can not mix with water such as quick lime so that common briquetting machine shows incapability of processing those materials. Today, the high pressure dry powder briquetting machine made by YUKE is an ideal choice for you to solve such problem. This dry powder briquetting equipment can be used to process some powdery materials with low moisture content or without moisture. These materials are fed to rollers for compressing by means of high pressure screw feeder. Since it is equipped with hydraulic system, this high pressure briquette machine is also called hydraulic dry powder briquetting machine.
This hydraulic dry powder briquette machine is mainly characterized by high pressure, high briquetting success rate, stable performance, low energy consumption and no pollution. In addition, the finished briquettes boast high strength, and are unbreakable property during the process of transportation or smelting. YUKE high pressure dry powder briquetting machine is perfect for making coal powder, charcoal dust, lime powder, fluorite, aluminum powder, iron powder, steel slag, ferrosilicon powder, chromium powder, magnesium powder, nickel alloy powder and refractory material as well as powdery materials with low moisture content or no moisture into uniquely shaped briquettes.

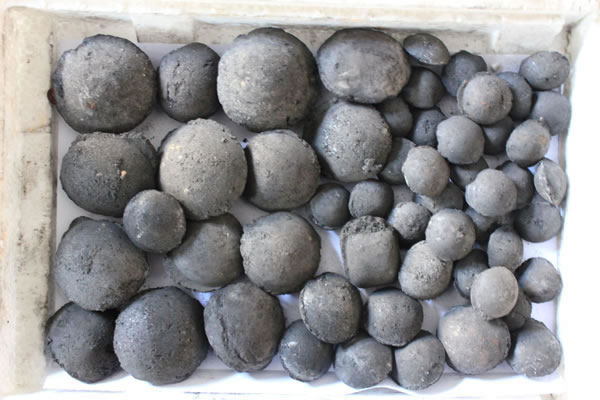

This lime briquetting machine can produce a variety of lime briquettes with all kinds of shapes. The shape can also be customized according to the requirement of customer. Our lime briquette extruder comes with high pressure, great briquetting efficiency, stable performance, etc. It is an energy saving and eco-friendly equipment while bringing tremendous economic benefit to enterprises.
| Model | YKHD530 | YKHD650 | YKHD750 | YKHD850 |
| Diameter(mm) | 530 | 650 | 750 | 850 |
| Width(mm) | 196 | 196 250 |
196 250 |
196 250 |
| Max Lineal Pressure Ratio(t/cm) | 5 | 6 | 6 | 8 |
| Total Pressure(t) | 100 | 110 | 120 | 300 |
| Power(kw) | 45 | 55 75 |
75 90 |
75 90 |
| Precom Pressed Power(kw) | 11 | 15 | 18.5 | 18.5 |
| Power of the Oil Pump(kw) | 1.5 | 1.5 | 2.2 | 3 |
| Speed(r/min) | 9 | 9 | 9 | 9 |
| Capacity(t/h) | 2-4 | 5-8 | 8-12 | 9-15 |
| Size of the ball(mm) | 38*25*13 (Defined by users) | |||
Note: Above technical parameters are for reference and can be separately designed according to customer's actual situation. In addition, above briquetting machines can be separately equipped with hydraulic system.

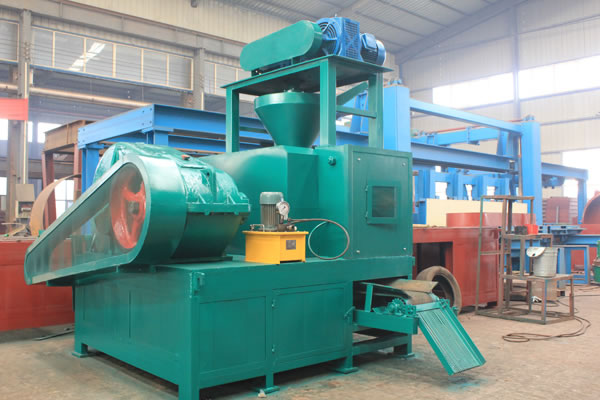

YUKE briquetting machine consists of three parts, namely feeding part, drive part and briquette molding part (main body).
The feeding part is mainly used to achieve ration feeding so as to ensure that the materials can be fed into the rollers uniformly. Specifically, the screw feeder, driven by electromagnetic speed-adjustable motor, presses materials into the main feeding port compulsively by means of the belt pulley and worm reducer. Owing to constant torque, the motor can keep constant feeding pressure, ensuring stable briquette quality.
The main drive system of the briquetting machine is composed of motor, triangle belt, reducer, exposed gear and rollers. The power generated by the electromagnetic speed-adjustable motor transmits to the driving shaft through belt pulley, reducer and coupler, and the driving shaft will turn synchronously with the driven shaft by the exposed gear.

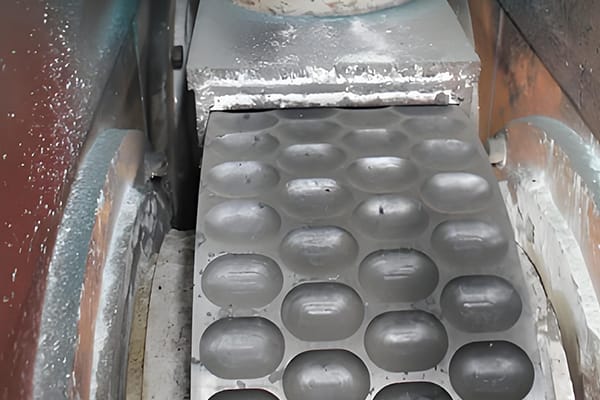

The core of the briquette molding part is the rollers. Through rollers, the raw materials can be compressed into briquettes with various shapes. In addition, the rollers feature overload protection, hence keeping sound quality.
