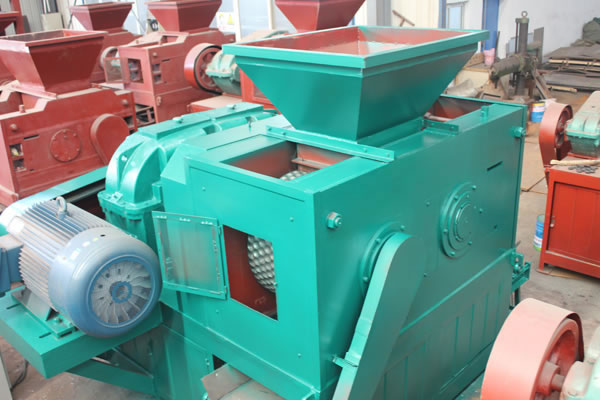

The mineral powder briquetting machine manufactured by YUKE is an ideal mechanical equipment designed for processing mineral slag and powder generated during ore milling. Through being made into briquettes, these wasted mineral slag and powder can be reused in various industries, hence increasing additional value of mineral resources. This mineral slag processing equipment can grind some nonferrous metals and mineral powders, including iron powder, iron ore powder, coal powder, core powder, copper powder, aluminum powder, mill scale, manganese powder, fluorite powder, steel powder, ferrosilicon powder, nickel alloy powder, etc. into briquettes.
Our mineral powder briquetting machine is proud of that the finished briquettes come with high intensity, great convenience for transportation and various shapes. Custom-made shape is also available. Additionally, the briquettes made by this nonferrous metal powder forming equipment can be used in blast furnace process and metal smelting as chemical and smelting auxiliary material. Since that, this mineral powder briquette machine has found wide application in coal industry, metallurgy industry, chemical industry, etc. To be specific, the steel plants can supply mill scale briquettes made using this briquetting equipment to chemical plants for manufacturing ferrosilicon. Aluminum briquettes can be put into smelting furnace for extracting aluminum. Fluorite briquettes can be used as cosolvent for making steel.
YUKE mineral powder briquetting machine has obtained great encouragement from the country and enterprises in that it can create considerable benefit for the enterprises while making mineral resources into full use.
1. High Pressure and High Briquetting Efficiency
YUKE briquetting machine is specially designed with four rollers that can enlarge equipment pressure and improve briquette making efficiency. In addition, hydraulic device can be alternative if required.
2. Energy Saving and Environment Friendliness
The press briquette machine is mainly used to press powdery industrial wastes and dust to regularly shaped briquettes for further usage, reducing dust pollution and improving resource utilization ratio. It can run in low power, thus saving much energy. Thanks to enclosed construction, the briquetting machine will not cause air and noise pollution.
3. Wide Application and Low Requirement for Working Environment
The industrial waste processing machinery is suitable for use in all countries around the world. According to different conditions of every country, it can be reasonably adjusted for normal use. Additionally, it can be used in all kinds of severe environment, such as extremely cold weather, high temperature, plateau, etc.
4. Easy Installation and Simple Transportation
This briquette machine is designed with high strength steel plate as its support, enabling it to be directly used on hard flat area without having to build a foundation. In addition, it is easy for users to transfer and transport this equipment.
5. Simple Operation and Easy Maintenance
The industrial fuel briquetting machine is available in semi-automatic and full automatic design as per customer’s requirements, thus ensuring less labor and simple operation. In daily use, you only need to do regular maintenance according to the maintenance instruction.
6. High Safety
All of drive parts of this industrial mechanical equipment such as drive shaft, gear, electric motor, belt pulley, etc. feature enclosed or semi-enclosed design, and it is outfitted with a observation table and hole on this briquette machine, thereby ensuring equipment safety and personal safety.

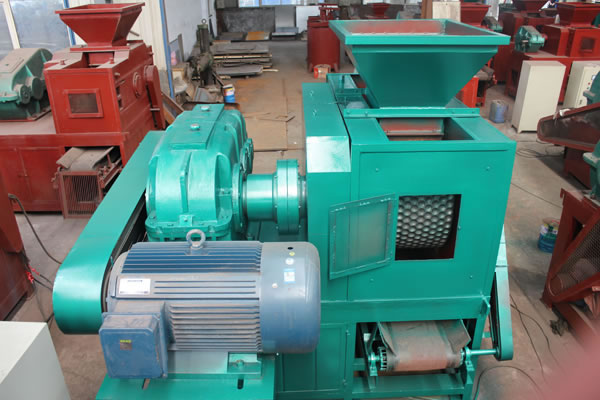

YUKE briquetting machine consists of three parts, namely feeding part, drive part and briquette molding part (main body).
1. Feeding Part
Materials will be sent into the feeding hopper of briquetting machine by belt conveyor or other feeding device. Under the action of gravity and the pre-pressure rollers, the materials will be entered into the surface of pre-pressure rollers and then be extruded.
2. Drive Part
The main drive system of the briquetting machine is composed of motor, triangle belt, reducer, exposed gear and rollers. The power generated by the electromagnetic speed-adjustable motor transmits to the driving shaft through belt pulley, reducer and coupler, and the driving shaft will turn synchronously with the driven shaft by the exposed gear.
3. Briquette Molding Part
The core of the briquette molding part is the rollers. Through rollers, the raw materials can be compressed into briquettes with various shapes. In addition, the rollers feature overload protection, hence keeping sound quality.
|Model||Roll diameter(mm)||Capacity(t/h)||Power(kw)||Briquettes shape and size|
|YKBM290||290||1-3||5.5||Defined by users|
Note: Above technical parameters are for reference and can be separately designed according to customer's actual situation. In addition, above briquetting machines can be separately equipped with hydraulic system.
Briquetting Line Process Flow Chart
4. Rotary dryer
5. Dosing machine
7. Binder mixer
8. Add density machine/Wheel mill
9. Rated silo
10. Briquette machine
11. Chain plate/Mesh belt dryer
12. Vertical dryer
Notes: This flow chart can be also designed based on customers'actual demand.
