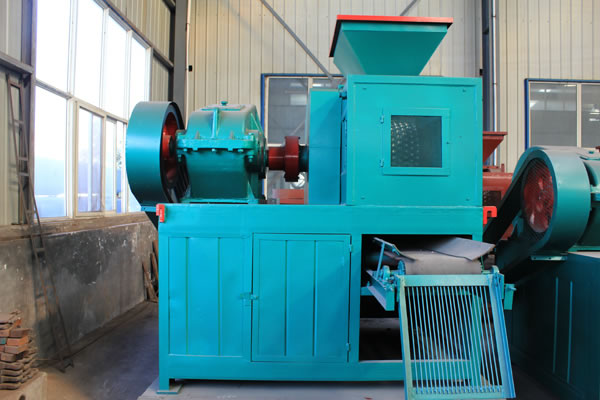

Nowadays, iron powders are needed to be processed into briquettes before its putting into use. Unfortunately, due to immature technology, the iron powder briquettes made by some processing equipment have low intensity and are easy to break in carrying or smelting, thus resulting in negative influence on industrial production. The iron powder briquetting machine manufactured by YUKE is a perfect solution to handle such problems. This metal powder briquette machinery can make iron powder, iron ore powder, iron ore fines, mill scale, steel powder, ferrosilicon powder into briquettes with great strength and various shapes.
The high pressure briquette machine is featured of high pressure, great briquetting efficiency, stable performance, low energy consumption and environment friendliness, etc. The finished products are extremely sturdy and unbreakable. In addition, the briquettes are available in various shapes, including oval shape, egg shape, pillow shape, square shape, etc. Special shape made as per requirements of customer is also available.
The iron powder briquetting machine is a kind of widely used metal powder processing equipment in coal industry, metallurgy industry and chemical industry. The briquettes made by this equipment can be used as metal smelting materials and chemical reactant. Some good cases in point are as follows. Steel plant reprocess iron ore powder briquettes to make steel; chemical plant uses mill scale briquettes to make ferrosilicon.
| Model | Roll Diameter(mm) | Capacity(t/h) | Power(kw) | Briquettes Shape and Size |
| YKBM290 | 290 | 1-3 | 5.5 | Defined by users |
| YKBM360 | 360 | 4-6 | 11-15 | Defined by users |
| YKBM430 | 430 | 6-8 | 18.5 | Defined by users |
| YKBM500 | 500 | 8-12 | 18.5-55 | Defined by users |
| YKBM500H | 500 | 8-12 | 18.5-55 | Defined by users |
| YKBM650 | 650 | 10-15 | 37-45 | Defined by users |
| YKBM650H | 650 | 10-15 | 37-45 | Defined by users |
| YKBM750 | 750 | 15-20 | 75-110 | Defined by users |
| YKBM750H | 750 | 15-20 | 75-110 | Defined by users |
| YKBM850 | 850 | 20-25 | 90-110 | Defined by users |
| YKBM850H | 850 | 20-25 | 90-110 | Defined by users |
| YKBM1000 | 1000 | 25-35 | 90-132 | Defined by users |
| YKBM1000H | 1000 | 25-35 | 90-132 | Defined by users |
Note: Above technical parameters are for reference and can be separately designed according to customer's actual situation. In addition, above briquetting machines can be separately equipped with hydraulic system.

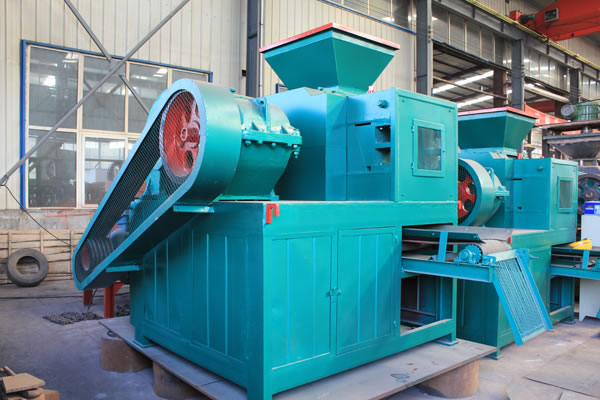

YUKE briquetting machine consists of three parts, namely feeding part, drive part and briquette molding part (main body).
The feeding part is mainly used to achieve ration feeding so as to ensure that the materials can be fed into the rollers uniformly. Specifically, the screw feeder, driven by electromagnetic speed-adjustable motor, presses materials into the main feeding port compulsively by means of the belt pulley and worm reducer. Owing to constant torque, the motor can keep constant feeding pressure, ensuring stable briquette quality.
The main drive system of the briquetting machine is composed of motor, triangle belt, reducer, exposed gear and rollers. The power generated by the electromagnetic speed-adjustable motor transmits to the driving shaft through belt pulley, reducer and coupler, and the driving shaft will turn synchronously with the driven shaft by the exposed gear.
The core of the briquette molding part is the rollers. Through rollers, the raw materials can be compressed into briquettes with various shapes. In addition, the rollers feature overload protection, hence keeping sound quality.
Notes: This flow chart can be also designed based on customers'actual demand.
