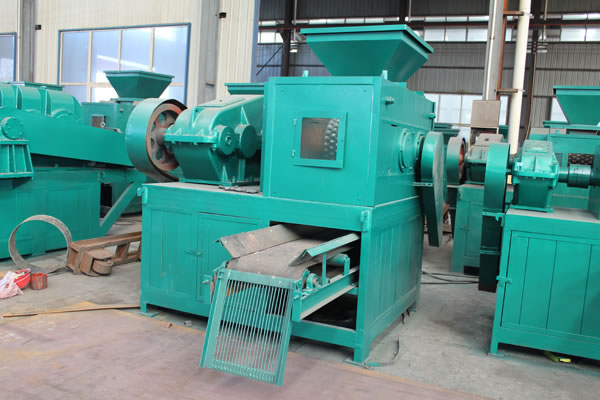

The ferro silicon powder briquetting machine is specially designed for processing ferrosilicon powder as well as other metal powder and mineral powder. This alloyed powder processing equipment can help enterprises make the best of mineral resources while saving a large amount of energy consumption and economic cost. The briquettes produced by this mineral powder briquette making machine can be used for metal smelting or as auxiliary materials of chemical and metallurgy.
The metal powder briquetting equipment can be used to process ferro silicon powder, iron powder, iron ore powder, mill scale, steel powder, etc. into briquettes with high hardness and uniform shapes. The shape of the briquettes includes oval shape, egg shape, pillow shape, square shape, etc. In addition, our ferro silicon powder briquetting machine can produce ferrosilicon powder briquette with custom-made shape.
| Model | Roll Diameter(mm) | Capacity(t/h) | Power(kw) | Briquettes Shape and Size |
| YKBM290 | 290 | 1-3 | 5.5 | Defined by users |
| YKBM360 | 360 | 4-6 | 11-15 | Defined by users |
| YKBM430 | 430 | 6-8 | 18.5 | Defined by users |
| YKBM500 | 500 | 8-12 | 18.5-55 | Defined by users |
| YKBM500H | 500 | 8-12 | 18.5-55 | Defined by users |
| YKBM650 | 650 | 10-15 | 37-45 | Defined by users |
| YKBM650H | 650 | 10-15 | 37-45 | Defined by users |
| YKBM750 | 750 | 15-20 | 75-110 | Defined by users |
| YKBM750H | 750 | 15-20 | 75-110 | Defined by users |
| YKBM850 | 850 | 20-25 | 90-110 | Defined by users |
| YKBM850H | 850 | 20-25 | 90-110 | Defined by users |
| YKBM1000 | 1000 | 25-35 | 90-132 | Defined by users |
| YKBM1000H | 1000 | 25-35 | 90-132 | Defined by users |
Note: Above technical parameters are for reference and can be separately designed according to customer's actual situation. In addition, above briquetting machines can be separately equipped with hydraulic system.
YUKE briquetting machine consists of three parts, namely feeding part, drive part and briquette molding part (main body).
The feeding part is mainly used to achieve ration feeding so as to ensure that the materials can be fed into the rollers uniformly. Specifically, the screw feeder, driven by electromagnetic speed-adjustable motor, presses materials into the main feeding port compulsively by means of the belt pulley and worm reducer. Owing to constant torque, the motor can keep constant feeding pressure, ensuring stable briquette quality.

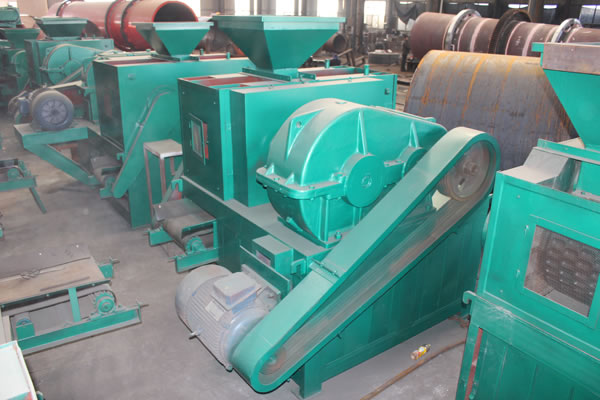

The main drive system of the briquetting machine is composed of motor, triangle belt, reducer, exposed gear and rollers. The power generated by the electromagnetic speed-adjustable motor transmits to the driving shaft through belt pulley, reducer and coupler, and the driving shaft will turn synchronously with the driven shaft by the exposed gear.
The core of the briquette molding part is the rollers. Through rollers, the raw materials can be compressed into briquettes with various shapes. In addition, the rollers feature overload protection, hence keeping sound quality.
Notes: This flow chart can be also designed based on customers'actual demand.
