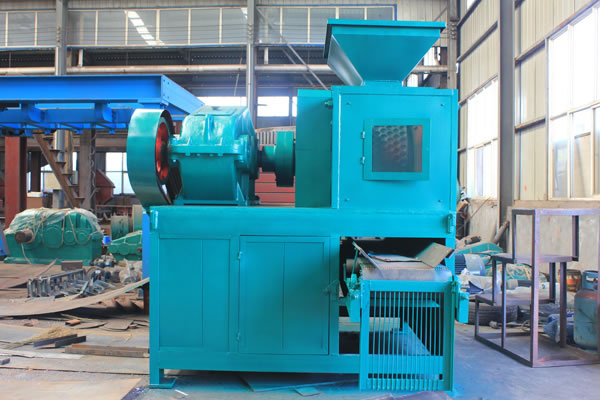

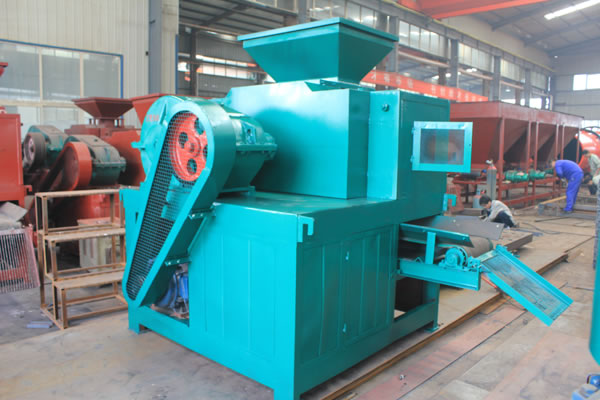

Mill Scale Briquetting Machine

Nowadays, many enterprises long for finding an effective way to reasonably utilize the massive mill scales generated in steel forging and hot rolling so as to reduce production cost and avoid resource waste. Fortunately, YUKE mill scale briquetting machine is the most appropriate solution for you. The mill scale briquette maker is mainly used to grind all kinds of mill scales produced by steel plants into briquettes that are of uniform composition for recycling use, hence creating more value and achieving resources reusing.

The finished products produced by this oxide scale briquetting equipment feature high briquetting rate, high hardness and great strength as well as unbreakable property in transportation or smelting. This mill scale briquetting machine is a energy saving and environment friendly mechanical equipment, presenting the ability of making full use of industrial wastes and saving energy consumption and economic cost for enterprises.

YUKE mill scale briquette machine is becoming increasingly popular and significant among various industries because of the outstanding function of mill scales. For example, steel plants can supply mill scales to chemical plants for making ferrosilicon after being processed.

Features
1. High Pressure and High Briquetting Efficiency
YUKE briquetting machine is specially designed with four rollers that can enlarge equipment pressure and improve briquette making efficiency. In addition, hydraulic device can be alternative if required.

2. Energy Saving and Environment Friendliness
The press briquette machine is mainly used to press powdery industrial wastes and dust to regularly shaped briquettes for further usage, reducing dust pollution and improving resource utilization ratio. It can run in low power, thus saving much energy. Thanks to enclosed construction, the briquetting machine will not cause air and noise pollution.

3. Wide Application and Low Requirement for Working Environment
The industrial waste processing machinery is suitable for use in all countries around the world. According to different conditions of every country, it can be reasonably adjusted for normal use. Additionally, it can be used in all kinds of severe environment, such as extremely cold weather, high temperature, plateau, etc.

4. Easy Installation and Simple Transportation
This briquette machine is designed with high strength steel plate as its support, enabling it to be directly used on hard flat area without having to build a foundation. In addition, it is easy for users to transfer and transport this equipment.

5. Simple Operation and Easy Maintenance
The industrial fuel briquetting machine is available in semi-automatic and full automatic design as per customer’s requirements, thus ensuring less labor and simple operation. In daily use, you only need to do regular maintenance according to the maintenance instruction.

6. High Safety
All of drive parts of this industrial mechanical equipment such as drive shaft, gear, electric motor, belt pulley, etc. feature enclosed or semi-enclosed design, and it is outfitted with a observation table and hole on this briquette machine, thereby ensuring equipment safety and personal safety.

Working Principle
YUKE briquetting machine consists of three parts, namely feeding part, drive part and briquette molding part (main body).

1. Feeding Part
Materials will be sent into the feeding hopper of briquetting machine by belt conveyor or other feeding device. Under the action of gravity and the pre-pressure rollers, the materials will be entered into the surface of pre-pressure rollers and then be extruded.

2. Drive Part
The main drive system of the briquetting machine is composed of motor, triangle belt, reducer, exposed gear and rollers. The power generated by the electromagnetic speed-adjustable motor transmits to the driving shaft through belt pulley, reducer and coupler, and the driving shaft will turn synchronously with the driven shaft by the exposed gear.

3. Briquette Molding Part
The core of the briquette molding part is the rollers. Through rollers, the raw materials can be compressed into briquettes with various shapes. In addition, the rollers feature overload protection, hence keeping sound quality.

Technical Parameters
Model Roll diameter(mm) Capacity(t/h) Power(kw) Briquettes shape and size
YKBM290 290 1-3 5.5 Defined by users
YKBM360 360 4-6 11-15
YKBM430 430 6-8 18.5
YKBM500 500 8-12 18.5-55
YKBM500H 500 8-12 18.5-55
YKBM650 650 10-15 37-45
YKBM650H 650 10-15 37-45
YKBM750 750 15-20 75-110
YKBM750H 750 15-20 75-110
YKBM850 850 20-25 90-110
YKBM850H 850 20-25 90-110
YKBM1000 1000 25-35 90-132
YKBM1000H 1000 25-35 90-132

Note: Above technical parameters are for reference and can be separately designed according to customer's actual situation. In addition, above briquetting machines can be separately equipped with hydraulic system.

Process Flow

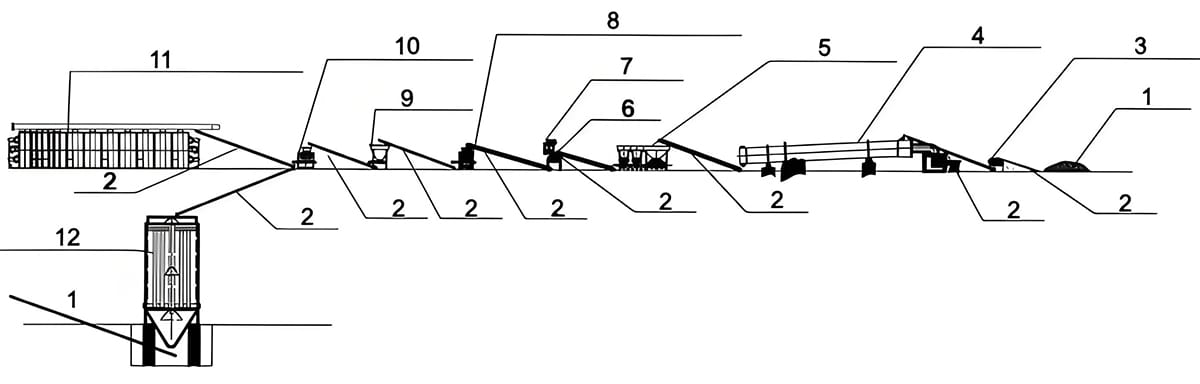

Briquetting Line Process Flow Chart

1. Materials
2. Conveyer
3. Mixer/silo
4. Rotary dryer
5. Dosing machine
6. Mixer

7. Binder mixer
8. Add density machine/Wheel mill
9. Rated silo
10. Briquette machine
11. Chain plate/Mesh belt dryer
12. Vertical dryer

Notes: This flow chart can be also designed based on customers'actual demand.
