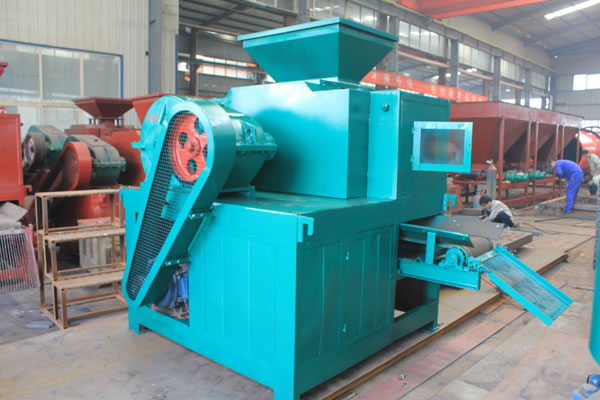

Nowadays, many enterprises long for finding an effective way to reasonably utilize the massive mill scales generated in steel forging and hot rolling so as to reduce production cost and avoid resource waste. Fortunately, YUKE mill scale briquetting machine is the most appropriate solution for you. The mill scale briquette maker is mainly used to grind all kinds of mill scales produced by steel plants into briquettes that are of uniform composition for recycling use, hence creating more value and achieving resources reusing.
The finished products produced by this oxide scale briquetting equipment feature high briquetting rate, high hardness and great strength as well as unbreakable property in transportation or smelting. This mill scale briquetting machine is a energy saving and environment friendly mechanical equipment, presenting the ability of making full use of industrial wastes and saving energy consumption and economic cost for enterprises.
YUKE mill scale briquette machine is becoming increasingly popular and significant among various industries because of the outstanding function of mill scales. For example, steel plants can supply mill scales to chemical plants for making ferrosilicon after being processed.
| Model | Roll Diameter(mm) | Capacity(t/h) | Power(kw) | Briquettes Shape and Size |
| YKBM290 | 290 | 1-3 | 5.5 | Defined by users |
| YKBM360 | 360 | 4-6 | 11-15 | Defined by users |
| YKBM430 | 430 | 6-8 | 18.5 | Defined by users |
| YKBM500 | 500 | 8-12 | 18.5-55 | Defined by users |
| YKBM500H | 500 | 8-12 | 18.5-55 | Defined by users |
| YKBM650 | 650 | 10-15 | 37-45 | Defined by users |
| YKBM650H | 650 | 10-15 | 37-45 | Defined by users |
| YKBM750 | 750 | 15-20 | 75-110 | Defined by users |
| YKBM750H | 750 | 15-20 | 75-110 | Defined by users |
| YKBM850 | 850 | 20-25 | 90-110 | Defined by users |
| YKBM850H | 850 | 20-25 | 90-110 | Defined by users |
| YKBM1000 | 1000 | 25-35 | 90-132 | Defined by users |
| YKBM1000H | 1000 | 25-35 | 90-132 | Defined by users |
Note: Above technical parameters are for reference and can be separately designed according to customer's actual situation. In addition, above briquetting machines can be separately equipped with hydraulic system.
YUKE briquetting machine consists of three parts, namely feeding part, drive part and briquette molding part (main body).
The feeding part is mainly used to achieve ration feeding so as to ensure that the materials can be fed into the rollers uniformly. Specifically, the screw feeder, driven by electromagnetic speed-adjustable motor, presses materials into the main feeding port compulsively by means of the belt pulley and worm reducer. Owing to constant torque, the motor can keep constant feeding pressure, ensuring stable briquette quality.
The main drive system of the briquetting machine is composed of motor, triangle belt, reducer, exposed gear and rollers. The power generated by the electromagnetic speed-adjustable motor transmits to the driving shaft through belt pulley, reducer and coupler, and the driving shaft will turn synchronously with the driven shaft by the exposed gear.
The core of the briquette molding part is the rollers. Through rollers, the raw materials can be compressed into briquettes with various shapes. In addition, the rollers feature overload protection, hence keeping sound quality.
Notes: This flow chart can be also designed based on customers'actual demand.
