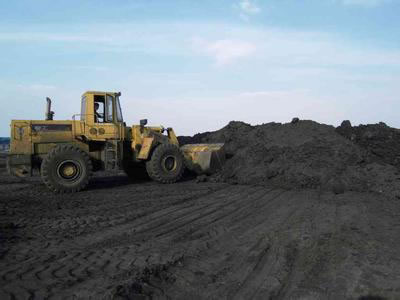

YUKE coal slime briquetting machine can be used to compress the coal slimes with water content of less than 15% by high pressure rollers into briquettes with higher density, lower moisture content, and uniform size and shape. Therefore, the additional value of the coal slimes can be improved maximally, and coal enterprises can fully utilize the coal slimes, thus saving cost. This industrial fuel briquette machine is capable of producing differently shaped briquettes. Specific shape as per customer’s requirement can also be made.
The cold press briquette machinery is widely used in coal industry, metallurgy industry, chemical industry, etc. for processing coal slimes into briquettes that can be utilized for electricity generating in power plant, gas making, boiler burning, calcining lime, metal smelting, etc. This coal lime briquetting machine manufactured by YUKE is a great project that is energy saving and eco-friendly. Using this roller press briquetting machine, your enterprise will obtain enormous economic benefit.
| Model | Roll Diameter(mm) | Capacity(t/h) | Power(kw) | Briquettes Shape and Size |
| YKBM290 | 290 | 1-3 | 5.5 | Defined by users |
| YKBM360 | 360 | 4-6 | 11-15 | Defined by users |
| YKBM430 | 430 | 6-8 | 18.5 | Defined by users |
| YKBM500 | 500 | 8-12 | 18.5-55 | Defined by users |
| YKBM500H | 500 | 8-12 | 18.5-55 | Defined by users |
| YKBM650 | 650 | 10-15 | 37-45 | Defined by users |
| YKBM650H | 650 | 10-15 | 37-45 | Defined by users |
| YKBM750 | 750 | 15-20 | 75-110 | Defined by users |
| YKBM750H | 750 | 15-20 | 75-110 | Defined by users |
| YKBM850 | 850 | 20-25 | 90-110 | Defined by users |
| YKBM850H | 850 | 20-25 | 90-110 | Defined by users |
| YKBM1000 | 1000 | 25-35 | 90-132 | Defined by users |
| YKBM1000H | 1000 | 25-35 | 90-132 | Defined by users |
Note: Above technical parameters are for reference and can be separately designed according to customer's actual situation. In addition, above briquetting machines can be separately equipped with hydraulic system.

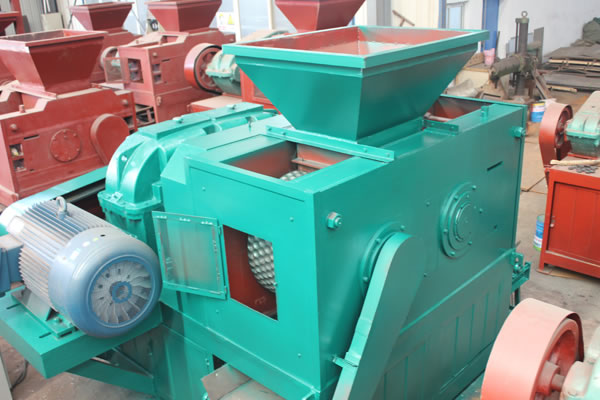

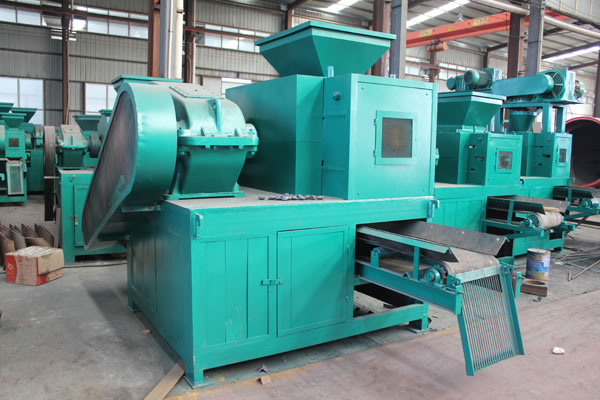

YUKE briquetting machine consists of three parts, namely feeding part, drive part and briquette molding part (main body).
The feeding part is mainly used to achieve ration feeding so as to ensure that the materials can be fed into the rollers uniformly. Specifically, the screw feeder, driven by electromagnetic speed-adjustable motor, presses materials into the main feeding port compulsively by means of the belt pulley and worm reducer. Owing to constant torque, the motor can keep constant feeding pressure, ensuring stable briquette quality.
The main drive system of the briquetting machine is composed of motor, triangle belt, reducer, exposed gear and rollers. The power generated by the electromagnetic speed-adjustable motor transmits to the driving shaft through belt pulley, reducer and coupler, and the driving shaft will turn synchronously with the driven shaft by the exposed gear.
The core of the briquette molding part is the rollers. Through rollers, the raw materials can be compressed into briquettes with various shapes. In addition, the rollers feature overload protection, hence keeping sound quality.
Notes: This flow chart can be also designed based on customers'actual demand.
