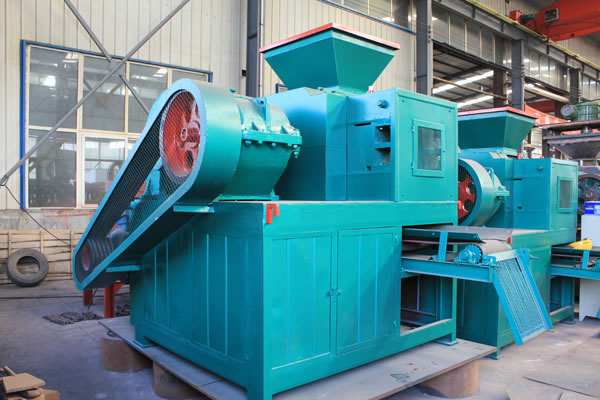

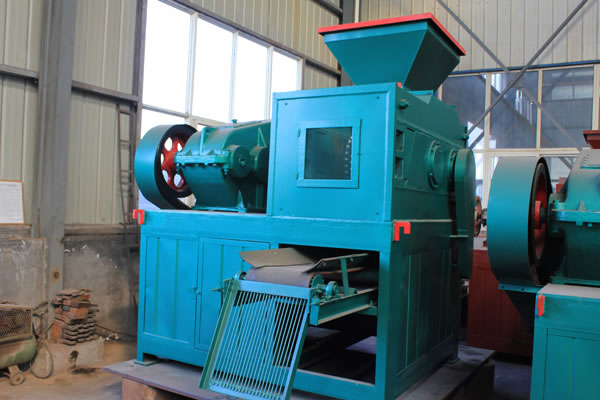

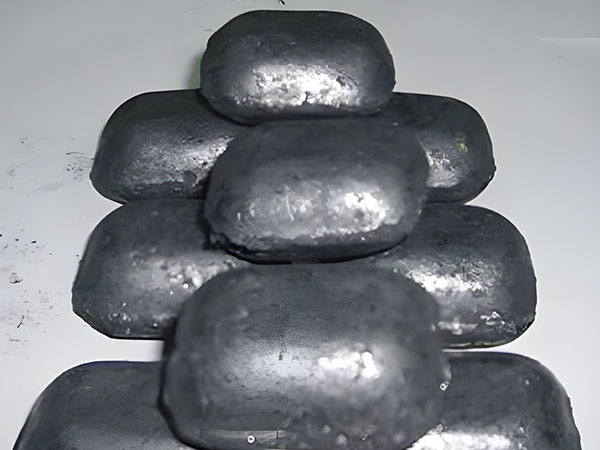

The coal briquetting machine is ideal processing equipment for pulverized coal before its being putting into furnace for burning, which will not only increase burning time but also improve resource utilization ratio. YUKE coal briquette machine can be used to compress powdery anthracite, soft coal, peat, coking coal, lignite, etc. to form coal briquettes used for generating power, making gas, smelting metal, heating, and burning in boiler. It is widely used in coal industry, metallurgy industry, chemical industry and other industries.
Specifically speaking, the industrial fuel briquetting equipment has brought tremendous benefit to enterprises and individuals. For instance, the power plant can use the coal briquetting machine to form coal powder or slag into regular briquettes that can be used as boiler fuel or used for heating. In addition, in many countries such as China, India, Indonesia, Malaysia, etc. a great deal of enterprises uses this coal briquette making machine to produce coal briquettes used for gas making. In a word, the coal briquette processing equipment can help you maximize the value of coal resources.
| Model | Roll Diameter(mm) | Capacity(t/h) | Power(kw) | Briquettes Shape and Size |
| YKBM290 | 290 | 1-3 | 5.5 | Defined by users |
| YKBM360 | 360 | 4-6 | 11-15 | Defined by users |
| YKBM430 | 430 | 6-8 | 18.5 | Defined by users |
| YKBM500 | 500 | 8-12 | 18.5-55 | Defined by users |
| YKBM500H | 500 | 8-12 | 18.5-55 | Defined by users |
| YKBM650 | 650 | 10-15 | 37-45 | Defined by users |
| YKBM650H | 650 | 10-15 | 37-45 | Defined by users |
| YKBM750 | 750 | 15-20 | 75-110 | Defined by users |
| YKBM750H | 750 | 15-20 | 75-110 | Defined by users |
| YKBM850 | 850 | 20-25 | 90-110 | Defined by users |
| YKBM850H | 850 | 20-25 | 90-110 | Defined by users |
| YKBM1000 | 1000 | 25-35 | 90-132 | Defined by users |
| YKBM1000H | 1000 | 25-35 | 90-132 | Defined by users |
Note: Above technical parameters are for reference and can be separately designed according to customer's actual situation. In addition, above briquetting machines can be separately equipped with hydraulic system.

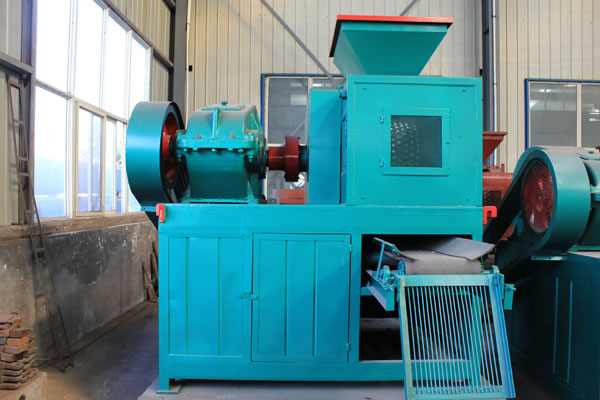

YUKE briquetting machine consists of three parts, namely feeding part, drive part and briquette molding part (main body).
The feeding part is mainly used to achieve ration feeding so as to ensure that the materials can be fed into the rollers uniformly. Specifically, the screw feeder, driven by electromagnetic speed-adjustable motor, presses materials into the main feeding port compulsively by means of the belt pulley and worm reducer. Owing to constant torque, the motor can keep constant feeding pressure, ensuring stable briquette quality.
The main drive system of the briquetting machine is composed of motor, triangle belt, reducer, exposed gear and rollers. The power generated by the electromagnetic speed-adjustable motor transmits to the driving shaft through belt pulley, reducer and coupler, and the driving shaft will turn synchronously with the driven shaft by the exposed gear.
The core of the briquette molding part is the rollers. Through rollers, the raw materials can be compressed into briquettes with various shapes. In addition, the rollers feature overload protection, hence keeping sound quality.
Notes: This flow chart can be also designed based on customers'actual demand.
