Since the characteristics of lime that it can not blend with water and is ultra fine, fluffy, etc. it is hard to form the lime into briquettes or the lime briquettes are breakable if you use the general briquette machine. Now, YUKE lime briquetting machine can perfectly solve this problem, giving you the best lime briquetting solution. Our lime briquette machining equipment can compress lime powder to shape lime briquettes of high intensity, uniform size and original lime property. The formed lime briquettes are unbreakable during transporting or smelting, and can be used as auxiliary material of metal smelting. As a great chemical reactant, the lime briquette produced by YUKE lime powder briquetting machinery is widely used in coal, metallurgy and chemical industry and other industries. For instance, the lime briquettes can be used in blast furnace for preventing furnace sintering.
This lime briquetting machine can produce a variety of lime briquettes with all kinds of shapes. The shape can also be customized according to the requirement of customer. Our lime briquette extruder comes with high pressure, great briquetting efficiency, stable performance, etc. It is an energy saving and eco-friendly equipment while bringing tremendous economic benefit to enterprises.
Features
1. High Pressure and High Briquetting Efficiency
YUKE briquetting machine is specially designed with four rollers that can enlarge equipment pressure and improve briquette making efficiency. In addition, hydraulic device can be alternative if required.
2. Energy Saving and Environment Friendliness
The press briquette machine is mainly used to press powdery industrial wastes and dust to regularly shaped briquettes for further usage, reducing dust pollution and improving resource utilization ratio. It can run in low power, thus saving much energy. Thanks to enclosed construction, the briquetting machine will not cause air and noise pollution.
3. Wide Application and Low Requirement for Working Environment
The industrial waste processing machinery is suitable for use in all countries around the world. According to different conditions of every country, it can be reasonably adjusted for normal use. Additionally, it can be used in all kinds of severe environment, such as extremely cold weather, high temperature, plateau, etc.
4. Easy Installation and Simple Transportation
This briquette machine is designed with high strength steel plate as its support, enabling it to be directly used on hard flat area without having to build a foundation. In addition, it is easy for users to transfer and transport this equipment.
5. Simple Operation and Easy Maintenance
The industrial fuel briquetting machine is available in semi-automatic and full automatic design as per customer’s requirements, thus ensuring less labor and simple operation. In daily use, you only need to do regular maintenance according to the maintenance instruction.
6. High Safety
All of drive parts of this industrial mechanical equipment such as drive shaft, gear, electric motor, belt pulley, etc. feature enclosed or semi-enclosed design, and it is outfitted with a observation table and hole on this briquette machine, thereby ensuring equipment safety and personal safety.
Working Principle

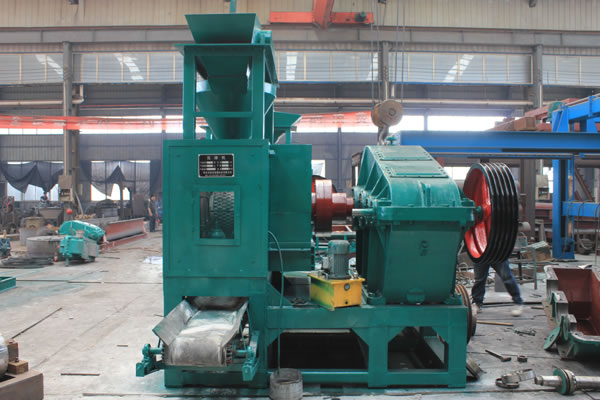

YUKE briquetting machine consists of three parts, namely feeding part, drive part and briquette molding part (main body).
1. Feeding Part
The feeding part is mainly used to achieve ration feeding so as to ensure that the materials can be fed into the rollers uniformly. Specifically, the screw feeder, driven by electromagnetic speed-adjustable motor, presses materials into the main feeding port compulsively by means of the belt pulley and worm reducer. Owing to constant torque, the motor can keep constant feeding pressure, ensuring stable briquette quality.
2. Drive Part
The main drive system of the briquetting machine is composed of motor, triangle belt, reducer, exposed gear and rollers. The power generated by the electromagnetic speed-adjustable motor transmits to the driving shaft through belt pulley, reducer and coupler, and the driving shaft will turn synchronously with the driven shaft by the exposed gear.
3. Briquette Molding Part
The core of the briquette molding part is the rollers. Through rollers, the raw materials can be compressed into briquettes with various shapes. In addition, the rollers feature overload protection, hence keeping sound quality.
| Model | YKHD530 | YKHD650 | YKHD 750 | YKHD 850 |
| Diameter(mm) | 530 | 650 | 750 | 850 |
| Width(mm) | 196 | 196 250 |
196 250 |
196 250 |
| Max lineal pressure ratio(t/cm) | 5 | 6 | 6 | 8 |
| Total pressure(t) | 100 | 110 | 120 | 300 |
| Power(kw) | 45 | 55 75 |
75 90 |
75 90 |
| Precompressed power(kw) | 11 | 15 | 18.5 | 18.5 |
| Power of the oil pump(kw) | 1.5 | 1.5 | 2.2 | 3 |
| Speed(r/min) | 9 | 9 | 9 | 9 |
| Capacity(t/h) | 2-4 | 5-8 | 8-12 | 9-15 |
| Size of the ball(mm) | 38*25*13 (Defined by users) | |||
Note: Above technical parameters are for reference and can be separately designed according to customer's actual situation. In addition, above briquetting machines can be separately equipped with hydraulic system.
Process Flow
Briquetting Line Process Flow Chart
1. Raw Material
2. Rated Silo
3. Conveyor
4. Frame
5. Inlet
6. Screw Forcing Feeding Device
7. Reducer
8. Motor
9. Base
10. High pressure Dry powder Briquetting Machine
11. Finished products
12. Discharging Conveyor
13. Conveyor
