Since the characteristics of lime that it can not blend with water and is ultra fine, fluffy, etc. it is hard to form the lime into briquettes or the lime briquettes are breakable if you use the general briquette machine. Now, YUKE lime briquetting machine can perfectly solve this problem, giving you the best lime briquetting solution. Our lime briquette machining equipment can compress lime powder to shape lime briquettes of high intensity, uniform size and original lime property. The formed lime briquettes are unbreakable during transporting or smelting, and can be used as auxiliary material of metal smelting. As a great chemical reactant, the lime briquette produced by YUKE lime powder briquetting machinery is widely used in coal, metallurgy and chemical industry and other industries. For instance, the lime briquettes can be used in blast furnace for preventing furnace sintering.
This lime briquetting machine can produce a variety of lime briquettes with all kinds of shapes. The shape can also be customized according to the requirement of customer. Our lime briquette extruder comes with high pressure, great briquetting efficiency, stable performance, etc. It is an energy saving and eco-friendly equipment while bringing tremendous economic benefit to enterprises.
| Model | YKHD530 | YKHD650 | YKHD750 | YKHD850 |
| Diameter(mm) | 530 | 650 | 750 | 850 |
| Width(mm) | 196 | 196 250 |
196 250 |
196 250 |
| Max Lineal Pressure Ratio(t/cm) | 5 | 6 | 6 | 8 |
| Total Pressure(t) | 100 | 110 | 120 | 300 |
| Power(kw) | 45 | 55 75 |
75 90 |
75 90 |
| Precom Pressed Power(kw) | 11 | 15 | 18.5 | 18.5 |
| Power of the Oil Pump(kw) | 1.5 | 1.5 | 2.2 | 3 |
| Speed(r/min) | 9 | 9 | 9 | 9 |
| Capacity(t/h) | 2-4 | 5-8 | 8-12 | 9-15 |
| Size of the ball(mm) | 38*25*13 (Defined by users) | |||
Note: Above technical parameters are for reference and can be separately designed according to customer's actual situation. In addition, above briquetting machines can be separately equipped with hydraulic system.

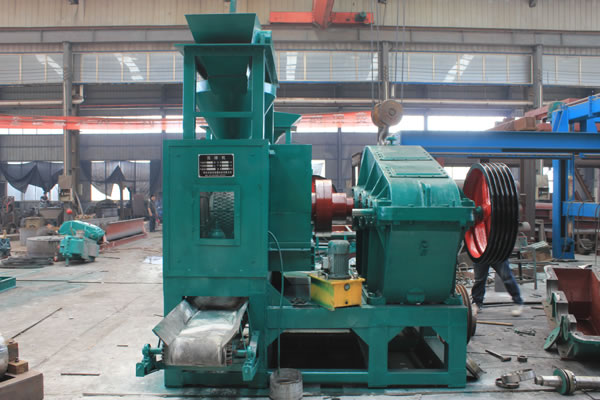

YUKE briquetting machine consists of three parts, namely feeding part, drive part and briquette molding part (main body).
The feeding part is mainly used to achieve ration feeding so as to ensure that the materials can be fed into the rollers uniformly. Specifically, the screw feeder, driven by electromagnetic speed-adjustable motor, presses materials into the main feeding port compulsively by means of the belt pulley and worm reducer. Owing to constant torque, the motor can keep constant feeding pressure, ensuring stable briquette quality.
The main drive system of the briquetting machine is composed of motor, triangle belt, reducer, exposed gear and rollers. The power generated by the electromagnetic speed-adjustable motor transmits to the driving shaft through belt pulley, reducer and coupler, and the driving shaft will turn synchronously with the driven shaft by the exposed gear.
The core of the briquette molding part is the rollers. Through rollers, the raw materials can be compressed into briquettes with various shapes. In addition, the rollers feature overload protection, hence keeping sound quality.
