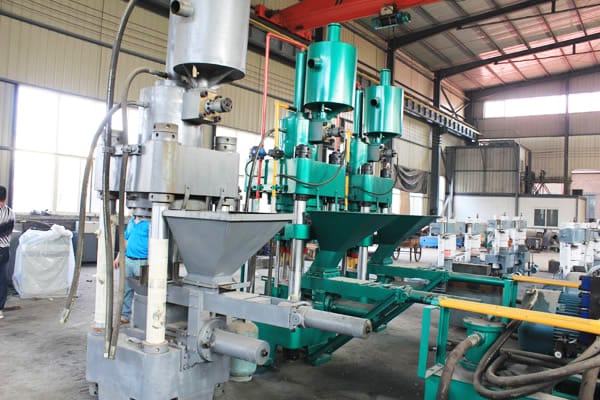

The metal chip briquetting press made by YUKE is capable of forming all kinds of metal chips such as iron chip, sponge iron, copper chip, aluminum chip, etc. into compact briquettes without adding any binding agent. This metal chip forming equipment directly processes materials into briquettes by means of cold press molding process without heating, adding additive, etc. The original material properties are maintained. According to user’s condition, the metal scraps briquette press can be outfitted with automatic screw feeder and automatic chain discharging device so as to lower labor strength.
The metal chip briquetting press fits for a variety of raw materials, including granule material, powdery material and blocky material. It is widely used in metallurgy, chemical, building industry and other industries.

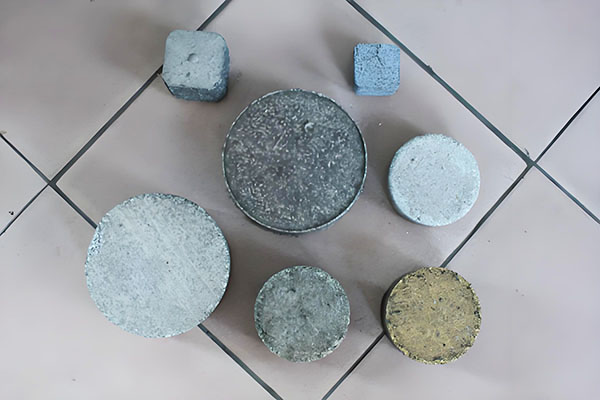

In addition, the density of finished products can reach over 5T/M3 (density and weight depend on raw materials). The briquettes can directly be put into furnace for reusing. One ton castings can save about RMB 700.
| Models | Briquette Diameter (mm) | Briquette Density(t/m3) | Briquette Weight(kg) | Power (kw) | Capacity (pcs/m) | Notes |
| YK32-200 | Φ80-100 | 4.0-5.2 | 2-3 | 11 | 2-3 | Manual |
| YK32-300 | Φ100-120 | 4.2-5.5 | 2-4 | 22 | 4-5 | Full Automatic (With Computer Control) |
| YK32-400 | Φ110-140 | 4.2-5.5 | 3-5 | 30 | 4-5 | Full Automatic (With Computer Control) |
| YK32-500 | Φ120-150 | 4.5-5.5 | 5-8 | 30 | 3-5 | Full Automatic (With Computer Control) |
| YK32-600 | Φ130-150 | 4.6-5.5 | 6-9 | 30-37 | 3-4 | Full Automatic (With Computer Control) |
| YK32-700 | Φ140-160 | 4.6-5.5 | 8-10 | 37 | 3-4 | Full Automatic (With Computer Control) |
YUKE hydraulic briquetting press is entirely manufactured from steel casting instead of steel plate weld assembly, eradicating cracking problem and improving stability and service life.
Advanced hydraulic drive technology, superposition and combination valves, superior wear resistant oil seal and specially constructed oil cylinder by up-to-the-minute technology keep continuous operation with full power and stability.
The metal powder forming press boasts computer control system which contributes to high automation, low failure rate and easy maintenance.
Automatic screw feeder and chain discharging device can be equipped based on user's condition.
The industrial dryer is used for continuously processing large bulks of material that need their moisture content lowered.
The briquetting machine is a kind of mechanical equipment designed for making powdery material into briquette by high pressure double roller compressing.
